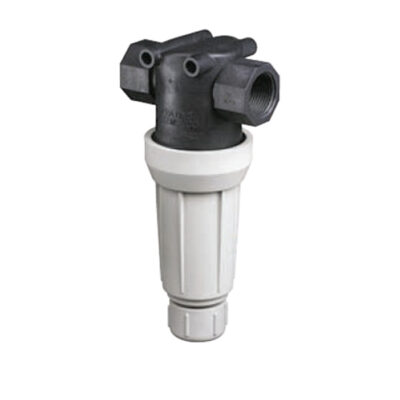

Flush-out Line Strainer (¾ or 1-inch)

Call for pricing

MESH SIZE

  • 16
  • 30
  • 50
  • 80
  • 100
  • 200

FEATURES

  • 200 PSI (14 bar) maximum pressure rating.
  • Strainer head and bowl are made of glass-filled polypropylene with EPDM gasket.
  • Screens are made of 304SS with color-coded polypropylene frames and are removable for cleaning.
  • Removable cap and O-ring for flush-out or self-cleaning operations.
  • Integral mounting provision allows the strainer to be attached to machine using M8 or 5/16 diameter bolts.
  • Available with 3/4, 19 NPT or BSPT (F) threads and 50 series flange fitting connections for easy assembly. For information on flange fittings see pages 102 and 103.
  • Uses same screen as the AA124A line strainer.
SKU: AA126ML-3 or AA126ML-4
